Building Blocks: Narrative

Chemistry

I hated high school chemistry.

Memorizing a grid of elements that felt entirely disconnected from reality, scribbling down invisible electron orbital shells, and balancing algebraic equations that felt like math homework wearing a lab coat. It was boring. It was rigid. It felt completely dead.

Except for certain Tuesdays. Tuesdays were lab days.

On special lab days, we got to use the bunsen burners. I loved sparking the striker and watching the roaring blue flame leap from the countertop. And I really loved when we got to blow things up. Those were just about the only things I took away from that class.

I still remember holding a silver strip of magnesium ribbon with a pair of rusty tongs and lowering it into the flame. In a matter of seconds, it ignited into a blinding, brilliant white flare – leaving behind nothing but a crumbly heap of white ash. Another week, we used a battery to split water into pockets of gas, trapping the invisible hydrogen in an upside-down test tube. When we tilted that tube over the Bunsen burner flame, it ignited with a fierce mini-explosion and a distinct squeaky pop.

For a teenager, that was the good stuff. But back then, I thought those moments were just flashy exceptions to an otherwise dull rule. I thought the “real” chemistry was the tedious memorization.

I was completely wrong.

It turns out that these experiments were actually bona-fide, OG chemistry. For hundreds of years, the entire field of chemistry revolved around curious, slightly unhinged people in drafty basements blowing things up, setting things on fire, and taking note of what happened next. It was messy, tactile, and chaotic.

The hard part about learning chemistry is that it now stands on the shoulders of giants, and they’ve done a remarkable job revealing the fundamental building blocks to the world around us. Now, instead of blowing things up, we are taught the way the world exists through the lens of atomic theory.

Atoms are the basic building blocks, and they are composed of protons, neutrons, and electrons. If we choose to dive deeper, we find that these sub-atomic particles are built from even smaller parts still. As we increase the resolution of our microscopes, the stranger and more complex things become. But as we zoom back out, a remarkable pattern begins to emerge.

The atomic world is unbelievably well behaved.

Atomic theory is not a way for chemistry teachers to bore you senseless. And it is not meant to complicate reality, but to organize it. The basic premise is that a small set of rules – governing charge, energy, and geometry – produces an enormous range of outcomes, all of them consistent. Matter does not become simple under this lens. But it becomes predictable.

I fully acknowledge that this does not make chemistry sexy.

But it makes it fun.

What we are presented with in water treatment is a dazzlingly complex array of interactions that even the most advanced computer simulations fail to quantify. The joy – and at times the agony – of this field is that there are no easy answers. Water treatment has not been solved, but there are solutions.

Through the Looking Glass

On my desk sits a cup of coffee, a stack of notes, and an eight-ounce glass of water. Every so often, my attention drifts from writing to the hidden world inside the glass. I pause, stare, and try to imagine what is actually happening in there. I’ve worked out that this glass contains about 8 × 10²⁴ molecules of H₂O – more than the number of stars in the observable universe.

Light passes effortlessly through it, giving the impression of nothing more than a clear, still liquid. Yet beneath the surface is something magnificent. The molecules are constantly interacting.

No single water molecule is doing anything remarkable. But each is linked to its neighbors through persistent intermolecular attractions. The individual bonds are constantly breaking, reforming, and reorganizing, but together they create a dynamic network that organizes as a cohesive whole.

As I tap on the side of the glass, ripples form across the surface.

The disturbance is transmitted through the connected structure. Energy moves. Waves travel. The network flexes and redistributes the force. Water is never at rest.

And it is never just water.

The same attractions that carried the ripple have also surrounded and hidden a manifest of passengers. Based on the latest Consumer Confidence Report, this glass also contains around 2 × 10²⁰ calcium ions, 1.3 × 10²⁰ sodium and chloride ions, and 3 × 10¹⁹ magnesium ions.¹ It is also carrying around 8 mg/L of dissolved oxygen and countless microscopic bacteria that survived the treatment process.

None of it is doing anything I can see. The water just sits there, giving no indication of what it carries.

But every passenger in that glass is waiting.

Give the calcium a hot surface and it will leave the water as scale – a stony crust that chokes heat transfer and can shut down a boiler. Give the dissolved oxygen a length of steel pipe and it will begin pulling electrons out of the metal, one atom at a time, until the wall gives way. Give the bacteria warmth, stillness, and nutrients over a few quiet days, and they will settle onto the surfaces, build shelter, and turn an ordinary water system into a reservoir for the kind of life that puts people in the hospital.

Nothing in the glass announces any of this.

Water’s ordinariness is the trap.

It is why facility managers underestimate water chemistry. It is why my parents still struggle to explain what I do for a living. It is why water looks simple – until it isn’t. A tube plugs. A pipe leaks. A chiller seizes. Suddenly there is far more to water than anyone bothered to see.

When I first started thinking this way, the world felt like it was falling apart. A glass of water stopped being a simple glass of water and became an incomprehensible swarm of atoms, molecules, and particles in motion. Understanding seemed to cost me simplicity.

But over time, the opposite turned out to be true.

This is the freaking cool part about chemistry: what is true of one atom is true of a trillion. We don’t have to account for 8 × 10²⁴ individual water molecules and countless dissolved ions. We only have to understand the rules they obey.

The behavior of water becomes surprisingly consistent and predictable – enough to explain everything that goes wrong in a water system: scale, corrosion, and fouling. Each is the result of interaction, governed at the atomic level, and mediated by the network formed between water molecules.

Our goal is to uncover the quiet machinery running beneath it all. To do that, we have to go back – briefly – to your high school chemistry class.

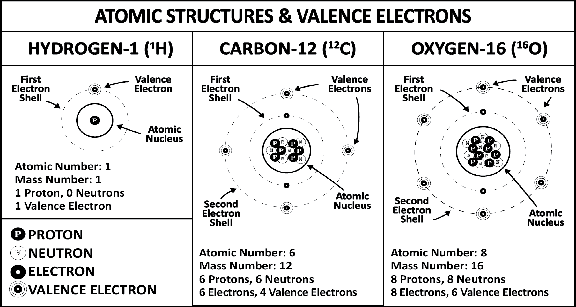

Inside the Atom

Chemistry happens because atoms make it happen.

Every bond formed, every crystal precipitated, every flake of rust and every grain of scale is the result of atoms pursuing something. To understand what they want – and why water is so good at giving it to them – we need to look at the three particles that make up every atom: protons, neutrons, and electrons.

They are not equals.

One decides what an atom is. One keeps it from flying apart. And only one of them actually does any chemistry.

Protons: The Identity of Matter

Protons are positively charged particles packed into the nucleus, and they answer the most basic question you can ask about an atom: what is it?

The number of protons is the atom’s identity.

One proton makes hydrogen.
Six make carbon.
Eight make oxygen.

Change that number and you don’t get a modified version of the same element – you get a different element entirely. (Don’t worry, you won’t. Outside of stars and nuclear reactors, protons don’t change. We get the atoms we get.)

That permanence is the bedrock everything rests on. It’s what allows the periodic table to exist at all. It’s what guarantees that oxygen stays oxygen – whether it’s dissolved in your glass, bound in scale, or making rust out of steel.

Protons define the atom. They don’t move it.

Neutrons: The Stabilizers

As elements become heavier, more protons get packed into the nucleus. These positive charges, crammed into an impossibly small space, create an intense repulsive force that must be offset for the nucleus to remain intact.

That stabilizing role is played by neutrons.

Neutrons carry no charge and live in the nucleus with the protons. Their number can change without altering the atom’s identity or behavior – variants called isotopes. Carbon-12 and Carbon-14 are both carbon; six protons each, different neutron counts, identical chemistry.

Neutrons hold the nucleus together. They don’t do anything else.

Electrons: The Promiscuous

Everything protons and neutrons can’t explain, electrons can.

These negatively charged particles exist outside the nucleus. In a neutral atom, the number of electrons matches the number of protons exactly – one negative charge for every positive one, perfectly balanced. Hydrogen carries one. Carbon carries six. Oxygen carries eight.

Unlike protons and neutrons, electrons are not fixed. They move. They rearrange. They are shared between atoms, transferred outright, and distorted by their surroundings.

These movements explain it all.

Electrons determine how atoms bond, dissolve, precipitate, and react. They decide whether metal remains intact or turns to rust, whether ions stay dissolved or assemble into scale, and whether a system remains stable or quietly drifts toward failure.

But not all electrons are equal when it comes to these decisions. To understand which ones actually matter, we have to look at where they’re known to hang out.

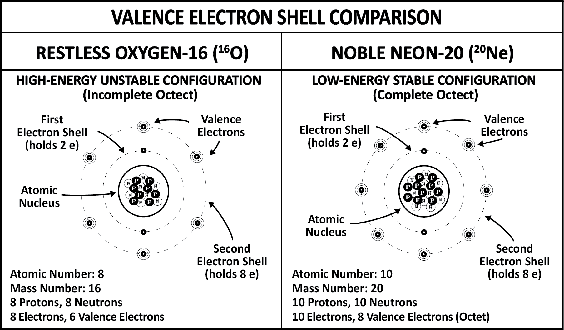

Valence Electrons

Electrons aren’t just floating freely around the nucleus.

They are drawn toward it – opposite charges attracting – and they pack in as close as physics will allow. The catch is that each energy level – or “shell” – can only hold so many at once. For atoms with a lot of protons, and therefore a lot of electrons, the innermost shell is filled up first with two electrons. Once it’s full, the next electrons are forced to stack outward into the next level, and the next, until every electron has a place.

Each new shell sits farther from the nucleus and holds its electrons at a higher energy than the one before it. The most stable an atom can be – its lowest possible energy – is when its outermost shell is completely filled. For the main-group elements most relevant to water chemistry, that means eight: a pattern known as the Octet Rule.

That is all fine and dandy for the noble gases, sitting quietly at the far right side of the periodic table. They have complete outer shells. Neon has ten protons, ten neutrons, and ten electrons. Two of the electrons occupy and fill the first electron shell, while the remaining eight electrons occupy and completely fill the outer valence shell (complete octet). Noble gases have their electrons arranged exactly where they want them, and as a result, they are – chemically speaking – at rest. How very noble of them.

Everyone else is restless.

The problem is that most neutral elements don’t have filled outer shells. Oxygen, for example, has eight protons, eight neutrons, and eight electrons. Like neon, two of the electrons occupy and fill the first electron shell. But that leaves only six electrons in the outer valence shell, two electrons shy of a stable octet. This leaves oxygen – and every other non-noble-gas element – in a higher-energy, unstable state.

These atoms do not tolerate that imbalance for long.

When unsatisfied atoms meet, the inner shells never touch. Those electrons stay put. They are buried too deep, shielded by everything stacked above them. The only part of an atom that ever touches the outside world is its outermost shell.

Those electrons have a name. We call them valence electrons – and they are the only electrons that ever do anything at all.

To lower their energy, atoms bond, share, steal, or surrender their valence electrons – all in pursuit of a filled outer shell. This relentless drive toward stability is the engine of chemistry.

It is also why almost nothing in nature exists as a lone atom. An unfilled shell is an open invitation. Sooner or later, a restless atom finds another, and they do something about it.

Bonding

Most atoms bond.

This is not romance. It is a solution to an energy problem.

Atoms bond because the resulting arrangement of electrons places them at a lower total energy. The elements themselves do not change – protons remain fixed. What changes, constantly, is the arrangement of electrons. These restless particles transfer, share, and redistribute themselves in pursuit of filled valence shells.

In water chemistry, atoms achieve this in two primary ways: by transferring electrons outright, or by sharing them cooperatively.

These strategies are known as ionic bonding and covalent bonding.

CONCEPT LOCK Atoms form bonds to reach lower-energy electron configurations. They transfer electrons completely (ionic), or they share them cooperatively (covalent)

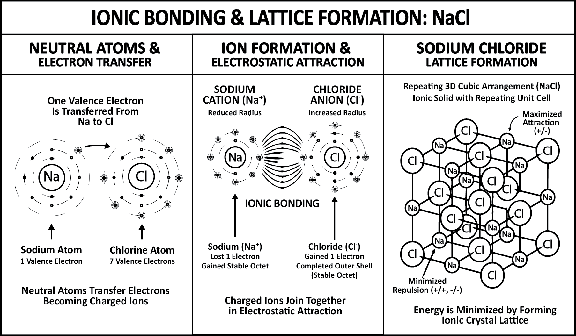

Ionic Bonds: The Transfer

Ionic bonds form when electrons are transferred from one atom to another.

Sodium chloride - table salt - is a classic example. Sodium has one valence electron, placing it in a high-energy state. Chlorine has seven valence electrons, one shy of a stable octet. Neither atom is satisfied.

To resolve this imbalance, sodium donates its lone valence electron. In doing so, it now has more protons than electrons and becomes a positively charged ion, or cation (Na⁺). Chlorine accepts the electron, gaining more electrons than protons and becoming a negatively charged ion, or anion (Cl⁻). We now refer to it as chloride, signaling that it has been ionized.

Both ions have happily achieved stable outer shells. And then, just like magnets, the positively charged sodium and negatively charged chloride are drawn together. Their electrostatic attraction forms an ionic bond.

When more sodium and chloride are added to the mix, the ions can assemble into a repeating, three-dimensional crystal lattice, held together by electrostatic forces. This highly ordered arrangement maximizes electrostatic attractions between oppositely charged ions (+/-), and minimizes repulsion between like-charged ions (+/+ : -/-). The resulting solid is more stable and energetically favorable than individual pairs of ions.

Ionic solids are strong – but they have a weakness. The same exposed charges that hold the lattice together also make it a target. Water can disrupt that arrangement by surrounding and stabilizing the individual ions, dissolving the lattice.

CONCEPT LOCK Ionic bonding resolves instability by separating charge. Opposite charges attract, forming ionic bonds. Additional ions can be assembled into a crystal lattice that is energetically favorable.

Covalent Bonds: The Share

Covalent bonds form when electrons are shared between atoms.

This usually occurs between non-metal elements, which hold their electrons tightly. Their nuclear charge and compact atomic radius give them a strong pull on nearby electrons – a property called electronegativity – which resists giving electrons up entirely.

Covalent bonding is the compromise: instead of transferring electrons outright, these atoms share them, so that each can move toward a more stable valence configuration. The shared electrons act as a bridge between the atoms, making the bonded arrangement more stable than the separated one.

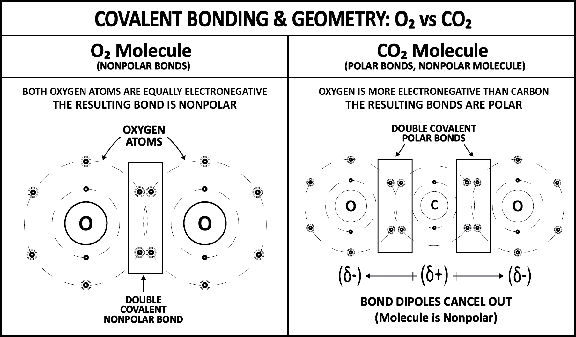

When identical atoms bond – like the two oxygens in O₂ – they share electrons equally because their electronegativities are the same. Each oxygen atom needs two additional electrons, so they form a double bond: two shared pairs, four electrons total. The pull is symmetric. The bond is nonpolar.

But covalent bonds do not only form between identical atoms.

Some of the most important molecules in water treatment are formed by covalent bonds between different elements. When atoms with different electronegativities bond – such as carbon and oxygen in CO₂ – the shared electrons are pulled unevenly. Oxygen, being more electronegative, holds the electrons closer, creating a polar covalent bond. The oxygen end carries a partial negative charge. The carbon end carries a partial positive charge.

This distinction matters.

Polar bonds cause molecules to interact with water in unique ways. However, a polar bond does not automatically create a polar molecule.

Molecular polarity depends on geometry**.**

In carbon dioxide, each carbon–oxygen bond is polar, but the molecule is linear. The opposing charge imbalances point in opposite directions and cancel each other out.

The bond is polar. The molecule is not.

CONCEPT LOCK Local charge imbalance does not guarantee global polarity. Polarity is decided by electronegativity and geometry.

Covalent bonding underlies many of the most important molecules in water treatment:

• hydrogen bonds with itself (H₂) and with oxygen (H₂O)
• carbon bonds with oxygen in carbonate (CO₃²⁻)
• sulfur forms sulfite (SO32-) and sulfate (SO42-)
• phosphorus bonds with oxygen in phosphate (PO₄³⁻)

Different molecules. Same principle: atoms sharing electrons in pursuit of stability.

In both ionic and covalent bonds, there are requirements that must be met. Atoms cannot simply donate or steal electrons from whomever they please. The process must be balanced. But keeping track of every atom, and every way they interact, would be a complete nightmare without a reliable guide.

Fortunately, these interactions follow strict constraints imposed by energy and electron arrangement – constraints that repeat so consistently across every element that they were mapped before anyone knew what an electron was.

The Map of Matter

The constraints that govern every atom were mapped by a single man – and he did it without ever knowing electrons existed.

In 1869, Dmitri Mendeleev made one of the greatest contributions to scientific literature ever. Awakening from a dream at his desk, he began to organize the physical nature of reality.

Using only measured masses and observed behaviors, he arranged all of the known elements into a table. As he did, a striking pattern emerged. Chemical properties repeated in a predictable, periodic rhythm. He called the resulting arrangement the Periodic Table.

At the time, only about 63 of the 118 total elements had been discovered, so his table was incomplete. But the pattern Mendeleev had uncovered was so compelling, so structurally sound, he left gaps where elements should exist.

Over time, those missing elements were found. Their masses matched his predictions. Their chemical behaviors fit the pattern. The table worked – even before anyone knew why.

It was a moment where science revealed the miraculous.

The universe did not have to be this orderly. Matter could have been chaotic, with no repeating logic, no predictable structure. Instead, the building blocks of reality fall into a framework so consistent that a 19th-century chemist could glimpse missing pieces of nature and describe them in advance.

Today, we understand why the periodic table works: atomic number determines electron structure, and valence electrons drive chemistry. This makes his table much more than a catalogue - it makes it a map of behavior.

The rows, called periods, represent the filling of a new electron shell. The columns, called groups, collect elements with matching valence configurations – and therefore matching chemistry. This is why sodium and potassium, both in Group 1, are incredibly soluble, and why calcium and magnesium, both in Group 2, form similar scales. They carry the same number of valence electrons, so they play by the same rules.

The Periodic Table is not something you memorize. It is something you use - and the Engineering Notes at the end of the chapter will show you how.

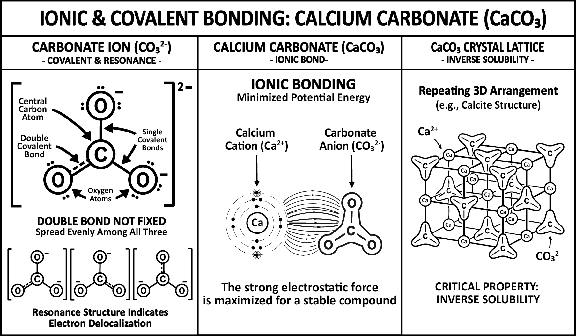

Aside: The Curious Case of Calcium Carbonate

Calcium carbonate (CaCO₃) is one of the most important scale-formers in water treatment because it combines both types of bonding.

At its core is the carbonate ion (CO₃²⁻). Carbon sits at the center, bonded to three oxygen atoms through strong covalent bonds. The result is a rigid, symmetric structure – internally stable and difficult to deform.

Despite this symmetry, the carbonate ion carries a net −2 charge. Covalent bonding holds it together. It does not neutralize it. Externally, carbonate behaves as a doubly charged anion – and that exposed charge is what makes it dangerous.

This is where calcium enters.

Calcium (Ca²⁺) is a small, highly charged cation with a strong electrostatic pull. When it encounters carbonate, the opposite charges attract powerfully, forming a strong ionic bond between the two species.

The result is a hybrid structure: covalent bonds lock the carbonate ion into a rigid shape; ionic attraction binds it tightly to calcium. Together, these interactions produce a dense, interlocking crystal lattice – energetically stable and extraordinarily difficult to pull apart.

And this stability has consequences.

Most things dissolve better in hot water - sugar into coffee, table salt into a boiling pot. Calcium carbonate does the opposite. The hotter water gets, the less CaCO₃ it can hold. The mineral begins to fall out of solution as solid scale.

Sit with where that leaves us. The scale forms worst exactly where the water is hottest – on the boiler tubes, the heat exchangers, the heated surfaces a facility depends on most. The one place you cannot afford an insulating crust is the one place chemistry is most determined to build it.

This behavior is known as inverse solubility.

It is partly due to calcium carbonate’s structure, which makes it difficult for water to hold. It also involves temperature, carbonate equilibrium, and carbon dioxide behavior, which we will build on later. For now, remember the field result: heat pushes calcium carbonate towards scale.

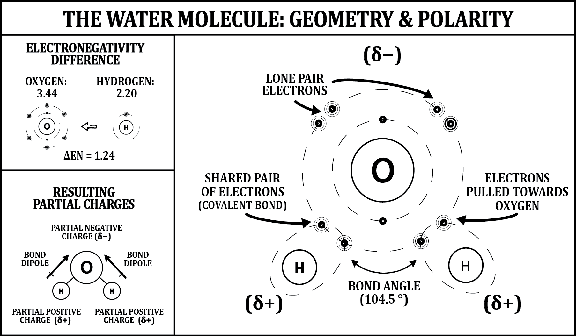

Building a Water Molecule

Up to this point, we have been laying rules.

Valence electrons dictate bonding.
Electronegativity determines how electrons are shared.
Geometry decides whether charge imbalance cancels – or survives.

Most molecules obey these rules quietly. Their internal tensions resolve themselves. Polarity may appear locally, but it disappears globally. Stability is achieved, and the story ends.

Water bends the rules.
Water is where they refuse to cancel.

Oxygen arrives with six valence electrons and a strong desire for two more. Hydrogen brings a single electron and is happy to share. Two hydrogens and one oxygen fit together neatly, forming two covalent bonds that satisfy all three atoms.

So far, nothing unusual.

As we’ve come to expect, the electrons are not shared equally between these two elements. Oxygen’s electronegativity is far greater than hydrogen’s, so the electrons are pulled closer to oxygen, creating a permanent charge imbalance: a partial negative charge near the oxygen atom and partial positive charges near the hydrogens.

On its own, that still isn’t special.

Most covalent molecules contain polar bonds. In most cases, molecular geometry cancels those imbalances, and the molecule settles into overall electrical neutrality.

This is where water is different.

The oxygen atom carries not only the electrons shared in its two covalent bonds, but also two lone pairs of electrons. These unshared electrons occupy space close to oxygen’s nucleus and strongly repel the bonding electrons associated with hydrogen. To minimize this repulsion, the molecule bends.

Instead of forming a straight line, water folds into a fixed, V-shaped structure, locking the hydrogens at an angle of about 104.5 degrees.

That shape matters. Tremendously.

Because the charges are now separated in space, water becomes a polar molecule.

One side - near the hydrogen atoms - is always slightly positive.
The other side - near the oxygen atom - is always slightly negative.

This is not a temporary condition. It is not something that cancels out or disappears with motion. It is written into the geometry of the molecule itself.

It is asymmetric. It is polar. It carries stored electrical tension.

And that tension is not idle. A molecule with a charged positive end and a charged negative end is a molecule that grabs. The negative oxygen reaches for anything positive. The positive hydrogens reach for anything negative. This is the shape that dissolves rock, strips minerals from the earth, and surrounds every passenger waiting in that glass on my desk. A water molecule is a key that’s been cut to fit almost every lock in nature.

And yet – by itself – it does almost nothing.

It cannot wet a surface. It cannot dissolve a crystal. It cannot move heat or carve a river.

For that, it needs neighbors.

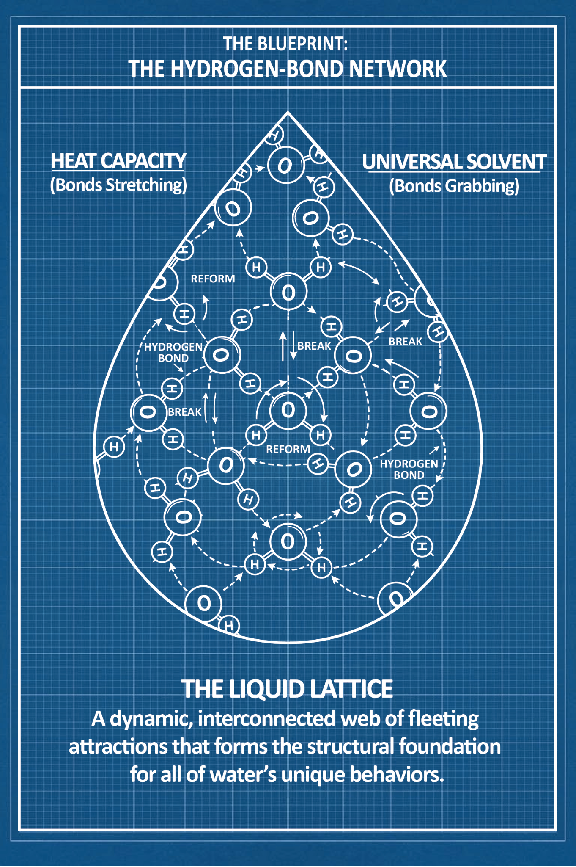

The Hydrogen Bond Network

When the positive end of one water molecule meets the negative end of another, they stick. This attraction is called a hydrogen bond.

Hydrogen bonds are not true chemical bonds. They do not create new molecules. They are something looser – persistent intermolecular attractions, roughly one-tenth the strength of a covalent bond.

Individually, they are weak.
Collectively, they change everything.

Each water molecule can participate in up to four hydrogen bonds: two through its hydrogens and two through the lone electron pairs on its oxygen. In the eight-ounce glass on my desk, roughly 8 × 10²⁴ molecules participate in more than 10²⁵ hydrogen bonds at any given instant – constantly breaking, constantly reforming, each one lasting less than a trillionth of a second.

No single bond survives. The structure they build persists.

This is the Hydrogen-Bond Network: a real, physical network that exists wherever liquid water exists. And it is the reason water does anything at all. The ripple across its surface was not caused by individual molecules. It was enabled by the network passing the disturbance along, hand to hand, molecule to molecule.

This is precisely what makes water so valuable to industry. Working as a cohesive whole, the network moves energy – it stores heat without flinching, releases it slowly, and steadies abrupt changes before they can do damage.

But the network does not only serve us.

It dissolves minerals out of rock and carries them into our systems as scale. It pulls oxygen from the air and delivers it to metal surfaces where corrosion begins. It hands microbial life the nutrients and warmth it needs to colonize.

The same network that makes water indispensable is the network that makes water treatment necessary.

This network is the blueprint.

Everything that follows - heat transfer, solubility, corrosion, scaling, life itself - flows from it.

We have built the machine. In the next chapter, we put it to work.

---
